Performance Parameter |
|
|
||
|
Light Source |
LED White light |
|||
|
Aiming Light |
Green Dot |
|||
|
Image Sensor |
1280*800 pixels |
|||
|
CPU |
1.2G Dual-core |
|||
|
Resolution(maximum) |
3mil |
|||
|
Minimum Print Contrast |
20% Reflection Difference |
|||
|
Image Field of View |
Horizontal: 50°; Vertical: 38° |
|||
|
Reading Angle |
Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
|||
|
Decoding Capability |
1D |
All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. |
||
|
|
2D |
Aztec Code; Data Matrix; Maxi Code; QR Code; HAN XIN; Micro QR Code |
||
|
|
Stack code |
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417 |
||
|
Reading Indicators |
LED light&Buzzer(adjustable tone and volume) |
|||
|
Typical depth of Field |
Precision |
Barcode |
Standard mode |
Long scan range mode |
|
|
3.34mil |
CODE128 |
10mm—60mm |
60mm-160mm |
|
|
5mil |
CODE128 |
5mm—90mm |
65mm-230mm |
|
|
3.34mil |
EAN-13 |
10mm—55mm |
60mm-150mm |
|
|
5mil |
EAN-13 |
5mm—85mm |
70mm-230mm |
|
|
13.34mil |
EAN-13 |
20mm—190mm |
40mm-450mm |
|
|
5mil |
PDF417 |
5mm—75mm |
65mm-210mm |
|
|
10mil |
DM |
5mm—100mm |
30mm-260mm |
|
|
20mil |
DM |
5mm—210mm |
20mm-480mm |
|
Electrical Parameter |
||||
|
Current |
< 280 mA |
|||
|
Input Voltage |
5 VDC (+/- 10%)/500mA |
|||
|
Environmental Parameter |
||||
|
ESD protection |
8 kV (Air discharge) |
|||
|
Drop resistance |
Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
|||
|
Temperature |
Working: -10 to 50 °C Storage/Transport: -20 to 70 °C |
|||
|
Humidity(non-condensing) |
5 - 95% |
|||
|
Ambient light |
Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux |
|||
|
Cordless Parameter |
||||
|

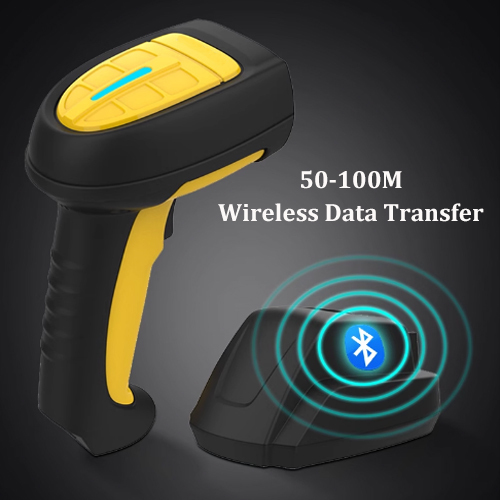

Transmission Mode |
Standard is 433Mhz Wireless, Bluetooth(Optional) |
|||
|
Transmission Distance |
433Mhz is 200M distance in open space |
|||
|

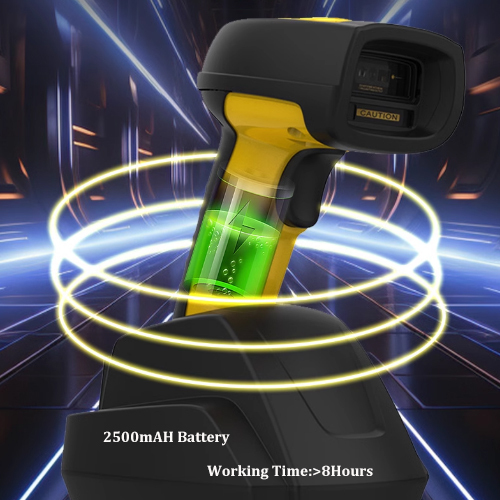

Battery Capacity |
2500mAh |
|||
|
Working Time |
It can continuous working over 12 hours |
|||
|
Charging time |
4HOURS |
|||
|
Warranty |
||||
|
Warranty |
24 Months(2 Years) |
|||
