Performance Parameter |
|
|
Light Source |
LED White light |
|

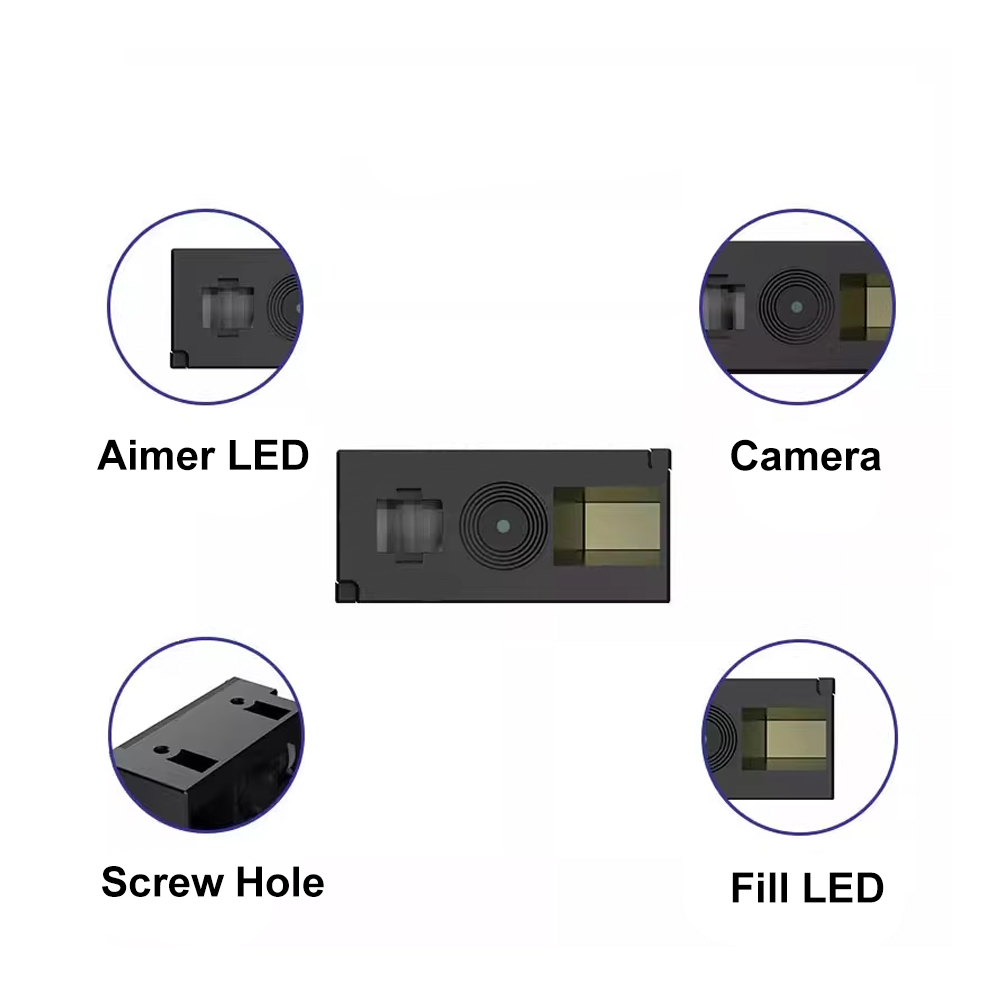

Aiming Light |
White LED |
|
Image Sensor |
640*480 pixels |
|

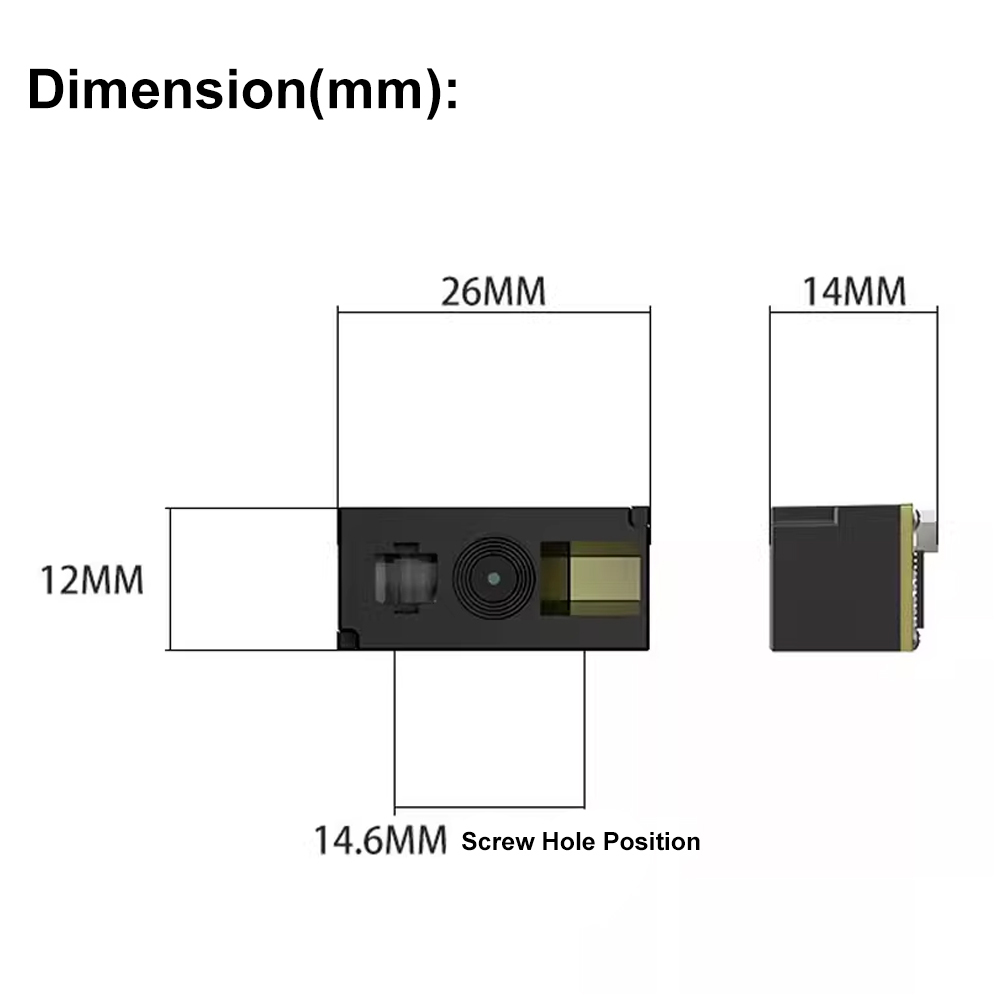

Dimension |
26mm x12mm x 14mm |
|
Resolution(maximum) |
4mils |
|
Minimum Print Contrast |
20% Reflection Difference |
|
Image Field of View |
Horizontal: 74°; Vertical: 58° |
|
Reading Angle |
Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
|
Decoding Capability |
Default Enable:EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded,Code93、CodaBar、QR Code、PDF417、DataMatrix |
|
Reading Indicators |
LED light&Buzzer(adjustable tone and volume） |
|
Typical depth of Field |
1-25cm |
|
Electrical Parameter |
|
|
Current |
Working current(Standard): 140 mA 5V ; Standby current(Standard): 130 mA |
|
Input Voltage |
DC +3.3V ~ +5V (±5%) |
|
Environmental Parameter |
|
|
ESD protection(Air discharge) |
±12KV |
|
Drop resistance |
Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
|
Particulate and water sealing |
IP52 |
|
Temperature |
Working: -20 to 40 °C; Storage/Transport: -40 to 70 °C |
|
Humidity(non-condensing) |
5 - 95% |
|
Ambient light |
Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux |
|

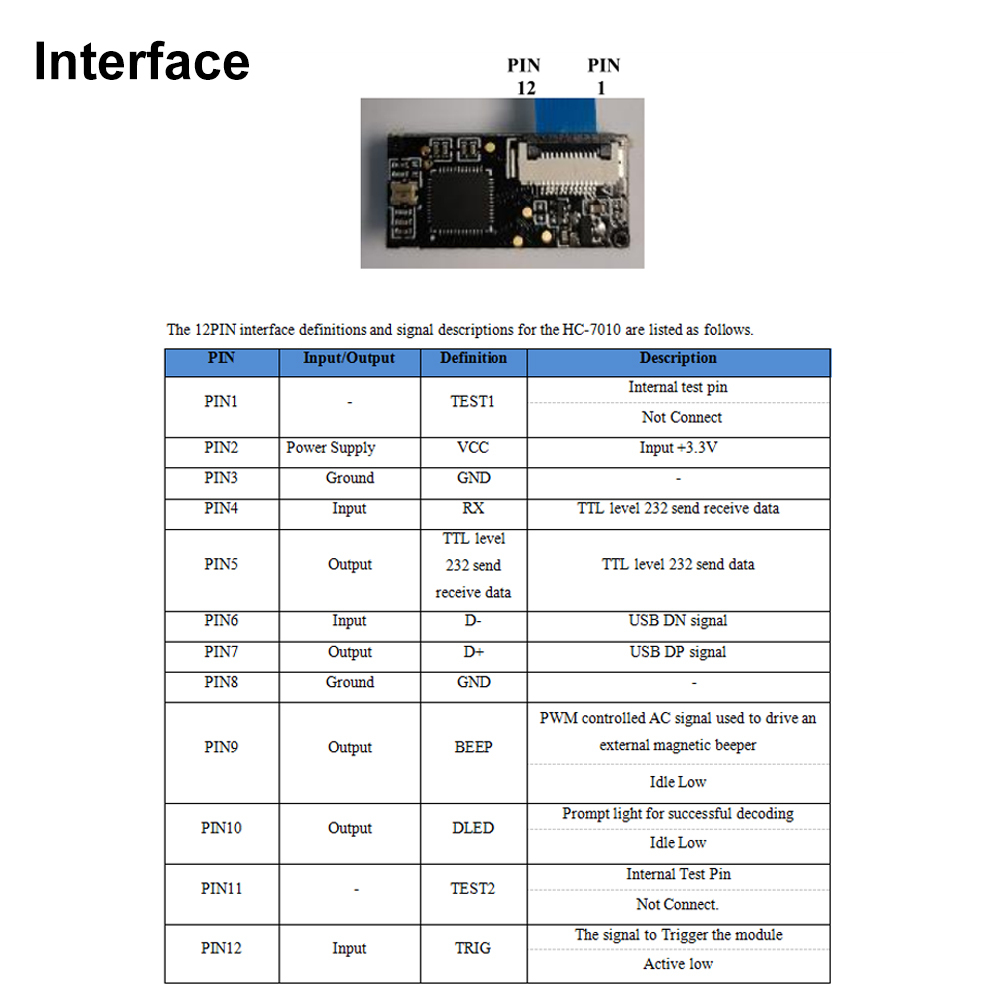

Interfaces |
TTL-232 / USB 2.0 Full Speed |
|
Transmission |
Support multi-language transmission, compatible with major operating systems, support the editing of barcode data. |
|
Warranty |
24 months(2Years) |
